High Accuracy High Speed Refrigerator Wire Tube Condenser Production Line Machine with Customizable Width and Length

High Accuracy High Speed Refrigerator Wire Tube Condenser Production Line Machine with Customizable Width and Length

high speed refrigerator condenser machine

customizable wire tube production line

automatic wire shelf welding equipment

원래 장소:

중국

브랜드 이름:

HWASHI

인증:

CE/CCC/ISO

모델 번호:

WL-TSP-MF150K

문의하기
조회를 요청하다
제품 상세정보
애플리케이션:
메쉬제
크기:
귀하의 제품에 따르면
체중(kg):
귀하의 제품에 따르면
상태:
새로운
보증:
1년
기준:
CE
용접재료:
철선
지불과 운송 용어
최소 주문 수량
1세트
가격
협상 가능
포장 세부 사항
FCL 용 바다 가치있는 목재 패키지 또는 PVC 필름
배달 시간
30 당신의 대금을 받은 후 일로 일합니다
지불 조건
신용장, 티/티
공급 능력
달 당 50 세트
제품 설명

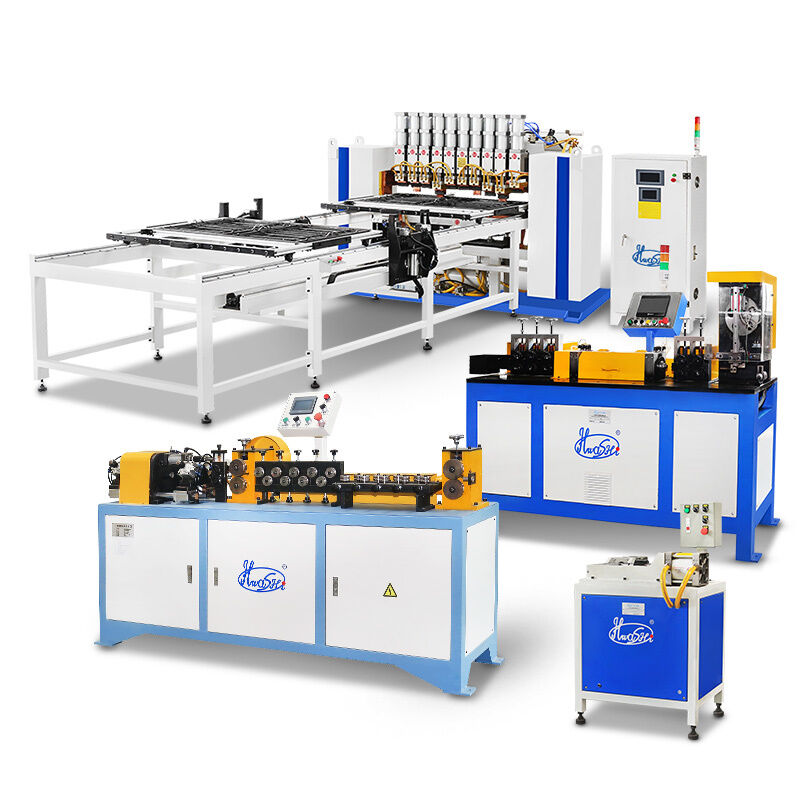

Refrigerator Wire Tube Condenser Production Line Machine, Welding and Bending Machine
This specialized production line is designed specifically for manufacturing condensers made of wires and serpentine bundy tubes. The complete line integrates multiple machines to create an efficient manufacturing process.
High Accuracy High Speed Refrigerator Wire Tube Condenser Production Line Machine with Customizable Width and Length 0
Production Line Components

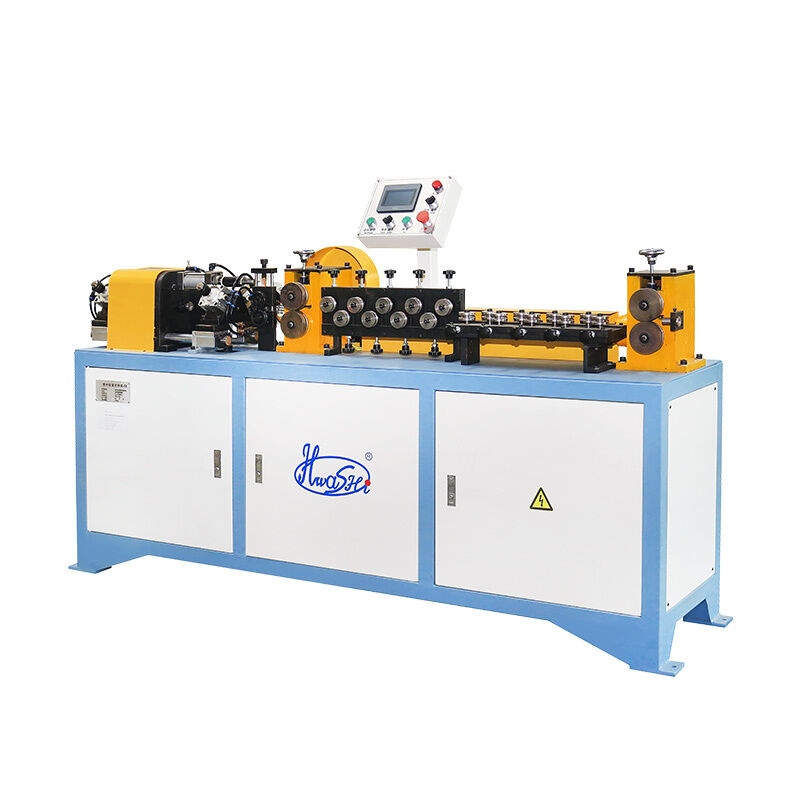

  • High speed wire straightening and cutting machine
  • Tube straightening and cutting machine

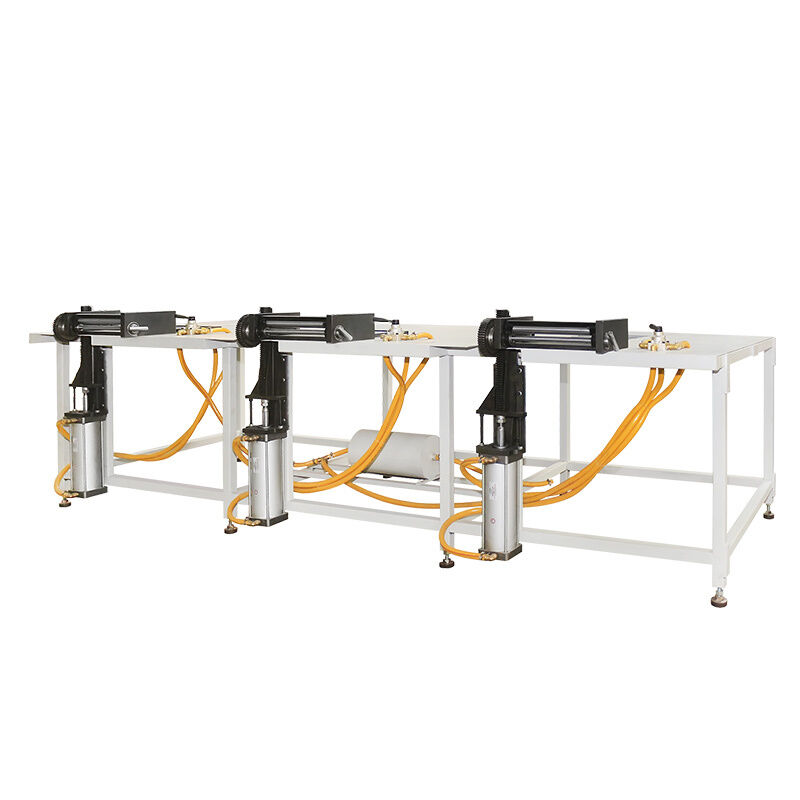

  • Tube bending machine
  • Automatic condenser welding machine
  • Additional equipment: tube end expanding/shrinking machine, condenser folding machine
We design complete production lines according to your product drawings and efficiency requirements. Simply provide your product specifications and output rate requirements, and our engineers will develop the most suitable proposal.
Production Process
High Accuracy High Speed Refrigerator Wire Tube Condenser Production Line Machine with Customizable Width and Length 1 High Accuracy High Speed Refrigerator Wire Tube Condenser Production Line Machine with Customizable Width and Length 2
Condenser Specifications
Parameter Specification
Wire diameter 1.1-1.5mm
Bundy Tube Diameter 4.76/6.35/8mm
Bundy Tube Radius R15/R50/R100
Width range 420-600mm (customized)
Length range 450-1200mm (customized)
Production Line Equipment
High Accuracy High Speed Refrigerator Wire Tube Condenser Production Line Machine with Customizable Width and Length 3 High Accuracy High Speed Refrigerator Wire Tube Condenser Production Line Machine with Customizable Width and Length 4 High Accuracy High Speed Refrigerator Wire Tube Condenser Production Line Machine with Customizable Width and Length 5
Additional Automation Systems
Automatic Wire Filling System
High Accuracy High Speed Refrigerator Wire Tube Condenser Production Line Machine with Customizable Width and Length 6
Pre-cut straight wires are loaded into the hopper, and the wire filling machine automatically places wires into the fixture. This system increases working efficiency and reduces labor requirements.
Automatic Double-layer Feeder
High Accuracy High Speed Refrigerator Wire Tube Condenser Production Line Machine with Customizable Width and Length 7
While one fixture undergoes welding, the wire filling system simultaneously loads wires onto the other fixture. Upon welding completion, the feeder automatically exchanges fixtures, significantly increasing production efficiency.
Technical Features
Product Name: Refrigerator Wire Tube Condenser Production Line Machine
Weight: 500-1000KG
Welding Accuracy: High Accuracy
Welding Speed: High Speed
Wire Diameter: 0.2-2.5mm (According To Power)
Applications
This versatile wire mesh welding equipment is essential for various industrial applications including construction, agriculture, fencing, and industrial settings. The machine's high accuracy welding capability creates precise and durable wire mesh panels that meet specific size and shape requirements.
