Name: Hwashi Customizable AC Pulse Spot Welding Machine for Different Welding Requirements in Hardware Industry
Brand: Guangdong Hwashi Technology inc.
SKU: WL-SP-100K
Price: 157,805.00 USD
Availability: InStock

집 > 상품 > 점 용접기 >

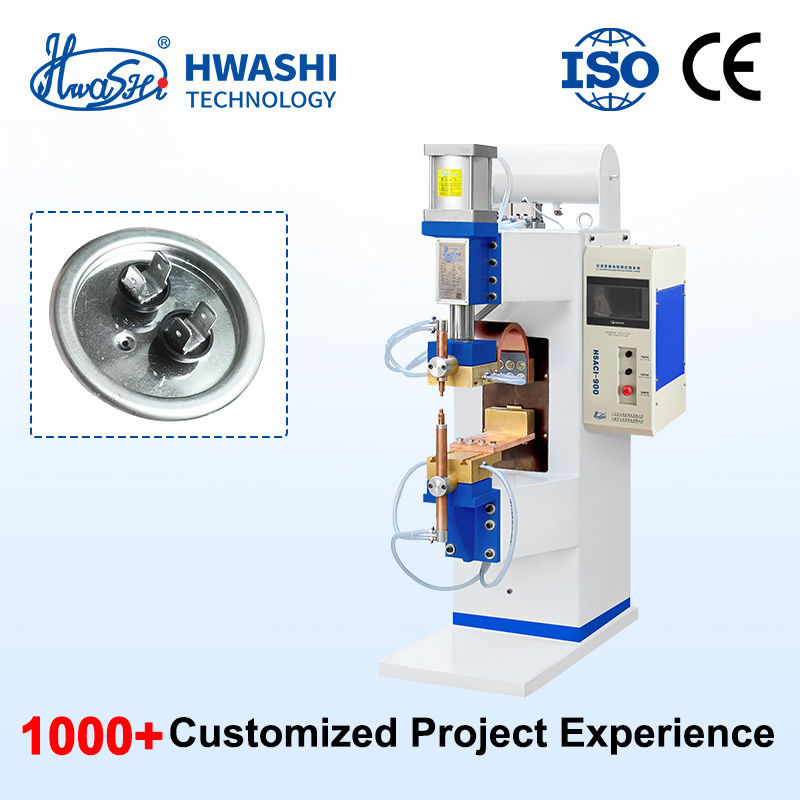

Hwashi Customizable AC Pulse Spot Welding Machine for Different Welding Requirements in Hardware Industry

customizable AC pulse spot welder

hardware industry spot welding machine

adjustable pulse welding equipment

원래 장소:

중국

브랜드 이름:

HWASHI

인증:

CE/CCC/ISO

모델 번호:

WL-SP-100K

문의하기

조회를 요청하다

제품 상세정보

제품 이름:

하드웨어 산업의 다양한 용접 요구 사항에 대한 Hwashi 사용자 정의 가능한 AC 펄스 스팟 용접 기계

신청:

구리 알루미늄강의 용접

크기:

850x900x1850*mm

무게:

450kg

기준:

CE/CCC/ISO

보증:

12 개월

지불과 운송 용어

최소 주문 수량

1 세트

가격

협상 가능

포장 세부 사항

바다 가치있는 나무 패키지

배달 시간

지불을받은 후 7-30 일

지불 조건

l/c, t/t

공급 능력

한 달에 50 세트

HWASHI Wire Diameter 2-8mm Automatic ring making butt welding machine Circle Ring Bar Pneumatic Resistance Butt Welding Machine

최고의 가격을 얻으십시오

화면

Hwashi Customizable AC Pulse Spot Welding Machine for Different Welding Requirements in Hardware Industry

최고의 가격을 얻으십시오

화면

HWASHI Wire Frame T Butt Welding Machine

최고의 가격을 얻으십시오

화면

Battery Spot Welder Resistance Welding Machine Capacitive Energy Spot Welder Stainless Steel Spot Weld Machine Price

최고의 가격을 얻으십시오

문의하기

+8613380655800

marketing@hwashi.com

지금 접촉하세요

제품 설명

Hwashi Customizable AC Pulse Spot Welding Machine for Different Welding Requirements in Hardware Industry

Product Description

AC pulse spot welding machine utilizes the general mains supply to lower the voltage and increase the electric curent, Such kind of lowvoltage but large current will be transmitted from the electrode to the linked point of two work pieces. On the linkage, due tothe resistance of work piece, high temperature will occur so the metal wil therefore generate high heat to make the work piecesin molten condition. Thus, the purpose of welding the two work pieces is achieved.

Hwashi Customizable AC Pulse Spot Welding Machine for Different Welding Requirements in Hardware Industry 1

Hwashi Customizable AC Pulse Spot Welding Machine for Different Welding Requirements in Hardware Industry 2

Features of The AC Pulse Spot Welding Machine
1) Three control functions: constant primary and secondary current, constant voltage;
2) Automatic adjustment of welding power and welding current;
3) Ensure the automatic cycle of each program segment of welding process in order to achieve complete automation;
4) When the current is too low, it will automatically electrify to conduct repair welding;
5) Be able to use the control panel to set parameters for different welding models directly. Convenient operation, easy adjustment;
6) Both single welding and continuous welding are available and each welding cycle has three welding conditions;
7) The intensity and time of welding current of each welding condition could be set separately. In the meantime, the current could be set to gradual up or down;
8) Pneumatic control (action output); the pneumatic control could be delayed;
9) Be able to store 9 types of welding models. Be able to select and adjust different welding models by choosing the number of models;
10) Silicon controlled adopts phase shift to trigger and the synchronous voltage is from the grid voltage to ensure the silicon controlled and grid will conduct synchronous phase shift trigger so as to achieve precise adjustment of the welding current and to meet the requirement of welding different materials;
11) When the power grid voltage fluctuates, the automatically compensation can make the welding current more stable. Thus, the welding quality could be guaranteed even though the grid voltage is under bad situation.

Model	Input Voltage	Related Capacity	Max Short Circuit Current	Duty Cycle Rate	Electrode Force	Electrode Stroke	Cooling Water
	V	KVA	KA	%	KG	mm	L/min
WL-S-5K	220	5	1	25	30	25	4
WL-S-10K	380 1PH	10	2.5	25	100	50	4
WL-S-16K	380 1PH	16	4.5	25	100	50	6
WL-SP-25K	380 1PH	25	7	25	350	80	6
WL-SP-35K	380 1PH	30	9	25	350	80	6
WL-SP-50K	380 1PH	50	13	25	800	100	6
WL-SP-75K	380 1PH	75	18	25	1000	100	8
WL-SP-100K	380 1PH	100	20	25	1000	10	8
WL-SP-150K	380 1PH	150	25	25	1000	8100	10
WL-SP-200K	380 1PH	200	30	25	1500	100	10
WL-SP-250K	380 1PH	150	38	25	1500	100	12
WL-SP-300K	380 1PH	300	45	25	2000	100	16

Hwashi Customizable AC Pulse Spot Welding Machine for Different Welding Requirements in Hardware Industry 3
