Name: HWASHI WL-MF-250K Vertical Type Metal Sheet Medium Frequency Inverter Spot Welding Machine
Brand: Guangdong Hwashi Technology inc.
SKU: WL-B-50K
Price: 157,805.00 USD
Availability: InStock

집 > 상품 > 점 용접기 >

HWASHI WL-MF-250K Vertical Type Metal Sheet Medium Frequency Inverter Spot Welding Machine

vertical type metal sheet spot welder

medium frequency inverter spot welding machine

spot welding machine with warranty

원래 장소:

중국

브랜드 이름:

HWASHI

인증:

CE/CCC/ISO

모델 번호:

WL-B-50K

문의하기

조회를 요청하다

제품 상세정보

용법:

엉덩이 용접

보증:

12 개월

힘:

75kVA

자격증:

CE/CCC/ISO

서비스 수명:

8-10 년

냉각수:

30L/min

색상:

파란색, 고객의 요청에 따라.

지불과 운송 용어

최소 주문 수량

1세트

가격

협상 가능

포장 세부 사항

바다 가치있는 나무 패키지

배달 시간

지불을받은 후 7-30 일

지불 조건

신용장, 티/티

공급 능력

한 달에 50 세트

HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine

최고의 가격을 얻으십시오

화면

HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine

최고의 가격을 얻으십시오

화면

HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine with 75KVA Power

최고의 가격을 얻으십시오

380V 입력 전압과 25-75KW 전력을 가진 자동 전기 저항 부트 용접 기계

최고의 가격을 얻으십시오

문의하기

+8613380655800

marketing@hwashi.com

지금 접촉하세요

제품 설명

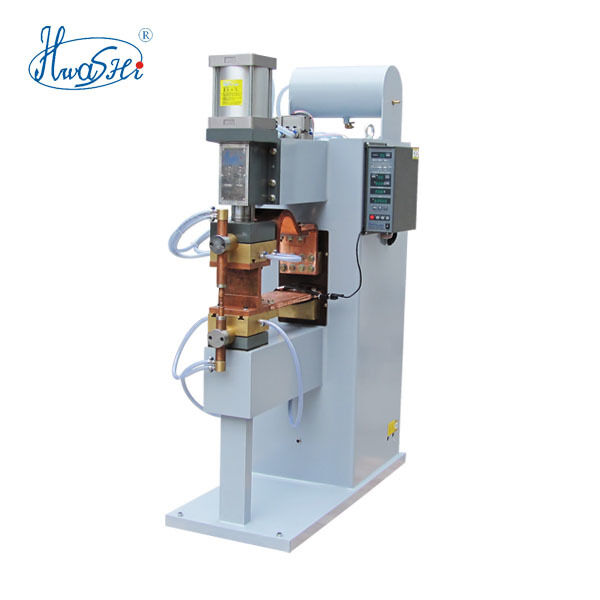

HWASHI WL-MF-250K Vertical Type Metal Sheet Medium Frequency Inverter Spot Welding Machine

The HWASHI WL-MF-250K is an advanced medium frequency inverter spot welding machine designed for precision metal sheet welding applications. This vertical type welding system utilizes innovative inverter technology to deliver superior performance and efficiency.

Technology Overview

This medium frequency inverter spot welder converts three-phase power supply through specialized rectification into 1000Hz AC voltage, which is then transmitted to a medium frequency transformer. The current is subsequently rectified to supply DC welding current, providing significant advantages in energy efficiency and performance.

Advanced System Features

Premium Materials

Thicker copper plates and copper belts ensure stable conductivity during welding operations, enhancing performance reliability.

Custom Electrode Processing

Customized electrodes designed for various materials including steel, aluminum, silver, stainless steel, and nickel steel.

Key Advantages

Three-phase power supply with grid balance and minimal grid impact
High power factor of 0.7-0.9 (compared to 0.4 for power frequency), significantly reducing reactive power loss
Enhanced welding control accuracy with inverter frequency above 1000Hz
Superior welding quality with stable nugget size, minimal spatter, and excellent surface finish
Reduced energy consumption and infrastructure requirements
User-friendly interface with multiple welding parameter storage and real-time monitoring

Technical Specifications

Model	WL-MF-100K
Input Power (V/φ)	380/3
Rated Power (KVA)	100
Applicable Material	Stainless Steel, Carbon steel, Aluminum, Metal
Max Short Circuit Current (KA)	21
Electrode Force (KG)	1000
Electrode Stroke (MM)	100
Dimension(LWH)	950mm800mm1675mm
Warranty	1 year

Application Examples
