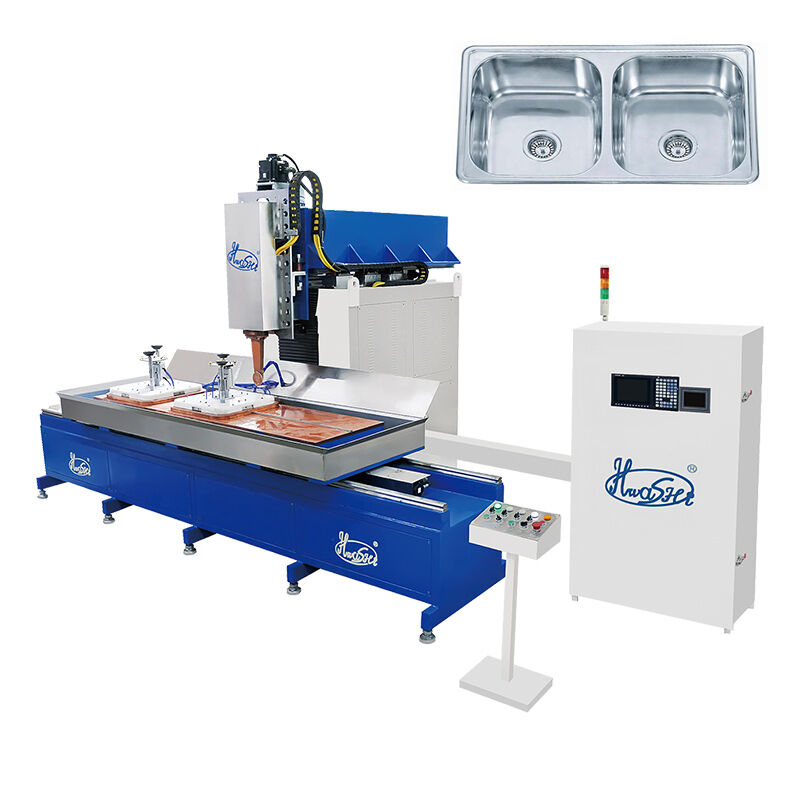

160kVA Rated Capacity Stainless Steel Sink Welding Machine with CNC 3-Axis Servo Control and Medium-Frequency Inverter (MFDC) Seam Welding

160kVA stainless steel sink welder

CNC 3-axis servo welding machine

MFDC seam welding machine

원래 장소:

CE/CCC/ISO

브랜드 이름:

HWASHI

인증:

CE/CCC/ISO

문의하기

조회를 요청하다

제품 상세정보

애플리케이션:

주방 싱크 용접

정격 용량:

160KVA

성형시간:

1 분

단일 총중량:

65.000kg

입력 전원:

단상 380V10% 50Hz

용법:

싱크 용접

냉각수 소비:

1000l/h

기준:

CE/CCC/ISO

지불과 운송 용어

최소 주문 수량

1세트

가격

협상 가능

포장 세부 사항

바다 나무로 된 패키지

배달 시간

지불을받은 후 7-30 일

지불 조건

신용장, 티/티

공급 능력

달 당 50 세트

160kVA Rated Capacity Stainless Steel Sink Welding Machine with CNC 3-Axis Servo Control and Medium-Frequency Inverter (MFDC) Seam Welding

최고의 가격을 얻으십시오

화면

주방 싱크대 제조 응용 분야에 일관된 용접을 제공하도록 설계된 스테인레스 스틸 싱크 용접기

최고의 가격을 얻으십시오

화면

화시 스테인리스 스틸 SS304 CNC 3축 제어 싱크 이음 용접기 (정격 용량 160kVA, CE/CCC/ISO 인증)

최고의 가격을 얻으십시오

화면

화시 스테인리스 스틸 SS304 CNC 3축 제어 싱크 이음 용접기 (정격 용량 160kVA, CE/CCC/ISO 인증)

최고의 가격을 얻으십시오

문의하기

+8613380655800

marketing@hwashi.com

지금 접촉하세요

제품 설명

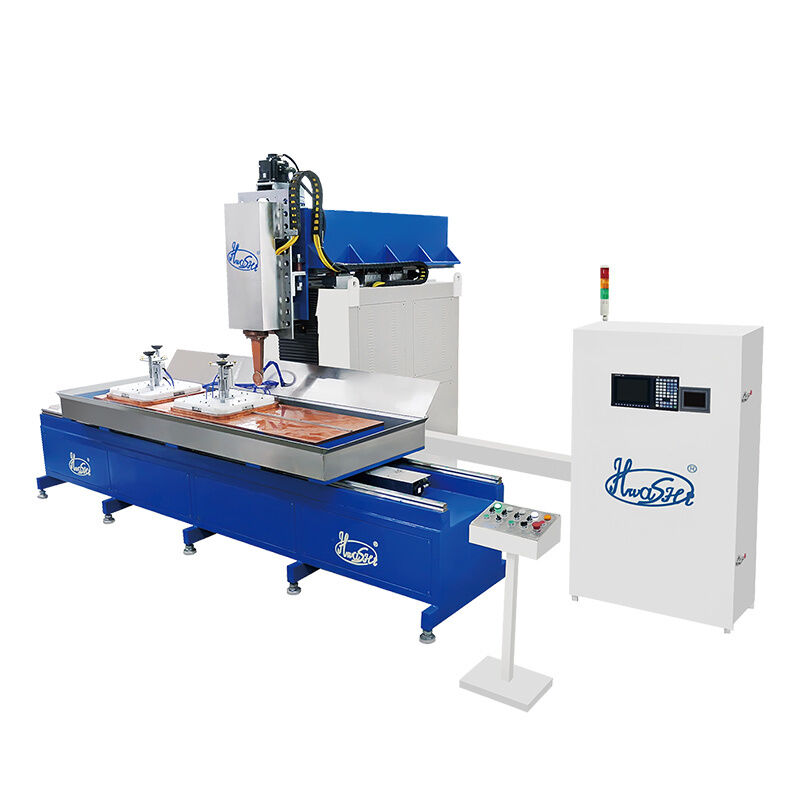

Stainless Steel Sink Welding Machine

Designed to provide consistent, high-quality welds for kitchen sink manufacturing applications, delivering flawless, high-strength seams for stainless steel sink bowls.

Application Overview

This specialized automated solution addresses the unique challenges of welding thin-gauge stainless steel (0.8-2mm thickness), combining precision engineering with intelligent control to redefine seam quality and production efficiency.

Key Advantages

CNC 3-Axis Servo Control

Japan Mitsubishi servo motors control X-axis (mold movement), Y-axis (electrode vertical travel), and A-axis (360° electrode rotation). Stores up to 95 welding programs for quick switching between sink models.

Medium-Frequency Inverter (MFDC) Seam Welding

2nd-generation MFDC power source with 30%+ more energy efficiency than conventional AC. Features fast DC current rise, stable output, and minimal spatter with current control accuracy of ±1%.

Large Copper Flat Table Electrode

Specially designed large flat copper platform ensures stable, uniform conductivity and minimizes heat distortion on thin stainless steel sheets (0.8–1.5mm).

360° Rotating Welding Wheel

Servo-controlled A-axis enables 360° rotation of the welding roller, seamlessly welding R-corners, straight edges, and curved profiles in a single pass.

Automatic Moving Welding Table

Synchronized operation with X-axis travel ≥2,500 mm, Y-axis travel ≥750 mm, and Z-axis travel ≥350 mm for full coverage of various sink sizes.

Water-Cooled System for Continuous Production

Water-cooled transformer, SCR, and electrode assembly enable extended continuous operation without overheating, maintaining stable weld quality.

Workflow Process

Operator places sink bowl onto the fixture on the moving table
Table automatically moves to welding position
Welding roller follows pre-programmed path, creating continuous sealed seam
Table returns to loading position for finished sink removal
Next cycle begins immediately with near-zero idle time

Applications

Application	Details
Kitchen Sink Seam Welding	Single bowl, double bowl, triple bowl — square, rectangular, round
Handmade Sink R-Corner Welding	Precise corner welding for premium handmade sinks
Stainless Steel Basin Welding	Wash basins, prep sinks, utility sinks
Commercial Kitchen Sinks	Large-format sinks for restaurants, hotels, hospitals
Stainless Steel Container Welding	Sealed containers, tanks, housings requiring watertight seams

Technical Specifications

Model	WL-FS-AC75K	WL-FS-MF75K	WL-FS-MF100K
Input Voltage	Three-phase 380V±10% 50Hz	Three-phase 380V±10% 50Hz	Three-phase 380V±10% 50Hz
Input Power	75KVA	75KVA	100KVA
Rated Input Current	115A	115A	150A
Rated Duty Cycle Rate	50%	50%	50%
Max Secondary Floating Voltage	DC9.75V	DC9.75V	DC11.6V
Secondary Max Short Circuit Current	26500A	26500A	28000A

Additional Features

Intelligent microcomputer single piece controller with pure digital setting and LED digital display
Automatic current compensation during voltage fluctuations
High-precision silicon controlled rectifiers from West Germany, IXYS and IR (United States)
Advanced mercury conductive technology for transmission tile axis
Welding roll wheel made from Japanese alloy copper material
Transformer using high-purity Japanese silicon steel sheets
Mosaic connection between welding mold and machine for easy assembly

Competitive Advantages

Leading Brand: HWASHI is the premier resistance welding brand in China for 20 years
Customized Service: Design and develop welding machines according to specific requirements
Genuine Product Quality: 12-month warranty, ISO9001:2000 and China Compulsory Certification compliant
After-Sales Support: 24-hour technical support by email with professional team
Quick Delivery: Just-in-time delivery service
Customer Responsiveness: Prompt response with customer satisfaction as primary goal
