Name: 25KVA Double Side Capacitive Discharge Spot Welder for Stainless Steel Cookware Pot Handle Projection Welding
Brand: Guangdong Hwashi Technology inc.
SKU: WL-B-50K
Price: 157,805.00 USD
Availability: InStock

집 > 상품 > 점 용접기 >

25KVA Double Side Capacitive Discharge Spot Welder for Stainless Steel Cookware Pot Handle Projection Welding

25KVA Power Capacitive Discharge Spot Welder

Double Side Welding Spot Welding Machine

Stainless Steel Cookware Projection Welding Machine

원래 장소:

중국

브랜드 이름:

HWASHI

인증:

CE/CCC/ISO

모델 번호:

WL-B-50K

문의하기

조회를 요청하다

제품 상세정보

제품명:

전기 용량 방전 스폿 용접기를 용접하는 25K 양측 사이드 SS 요리도구 포트 손잡이 돌기

크기:

950mm*800mm*1675mm

애플리케이션:

스테인레스 강, 강철 벨트의 용접. 강철 줄. 요리도구

무게:

350kg

전력(kW):

보증:

12개월

기준:

CE/CCC/ISO

지불과 운송 용어

최소 주문 수량

1세트

가격

협상 가능

포장 세부 사항

바다 가치있는 나무 패키지

배달 시간

지불을받은 후 7-30 일

지불 조건

신용장, 티/티

공급 능력

달 당 50 세트

25KVA Double Side Capacitive Discharge Spot Welder for Stainless Steel Cookware Pot Handle Projection Welding

최고의 가격을 얻으십시오

화면

HWASHI 75KVA Power Vertical Type Medium Frequency Inverter Spot Welding Machine CE/CCC/ISO Certified

최고의 가격을 얻으십시오

화면

HWASHI WL-MF-250K 수직형 75KVA 전력 중기 주파수 인버터 금속판 스팟 용접 기계

최고의 가격을 얻으십시오

화면

HWASHI 75KVA 전력 스폿 용접기 – CE/CCC/ISO 인증 커패시터 방전 스폿 용접기, 8-10년 수명

최고의 가격을 얻으십시오

문의하기

+8613380655800

marketing@hwashi.com

지금 접촉하세요

제품 설명

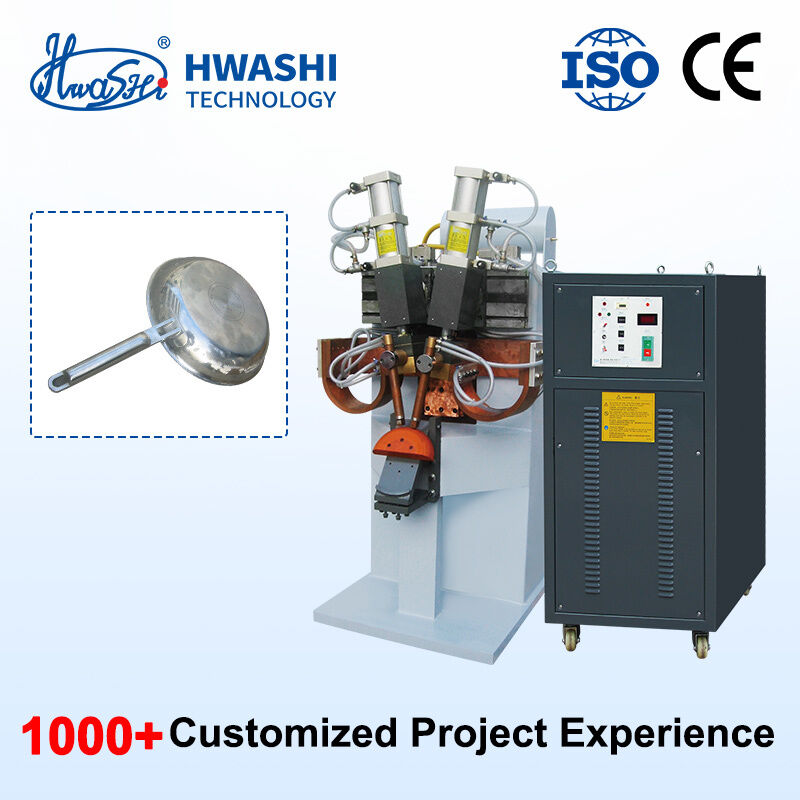

25K Double Side Capacitive Discharge Spot Welder For SS Cookware Pot

25K Double Side SS Cookware Pot Handle Projection Welding Capacitive Discharge Spot Welder. This double side stainless steel cookware pot handle projection welding machine is specifically designed for welding pot handles. It enables simultaneous welding of both handles to significantly increase production efficiency. Using projection welding methodology, this 25KVA machine is equipped with a capacitor discharge welding power source and is suitable for welding pot bodies with 1.2mm thickness and handles with 5mm diameter (with emboss).

Intelligent Welding Control System

Intelligent Touch Screen Controller for input and reading welding parameters. Options include Digital Dial Code Type, Intelligent Microcomputer Type, and Touch Screen Type.

Premium Raw Materials

Thicker Copper Plate or Copper Belt construction to ensure stable conductivity during welding operations.

Custom Processing Electrodes

Customized electrodes suitable for welding various materials including steel, aluminium, silver, stainless steel, and nickel steel.

Optimized Shape Structure

Designed with the right machine shape and mold configuration according to specific welding product requirements.

Key Features of Capacitor Discharge Spot Welding Machine

Low power grid requirements with minimal impact on electrical networks
Short welding process with high instantaneous current and small heat affected zone
Water cooling circulation system effectively reduces electrode and transformer consumption
Minimal welding surface oxidation and deformation, no black coating, eliminating post-welding grinding processes

Technical Specifications

Model	Voltage (V)	Power (KVA)	Output Head (W.S)	Capacitance (UF)	Electrode Force (KG)	Electrode Stroke (MM)	Overall Dimension (MM)
WL-C-1K	220V 1PH	1KVA	300	3000	30	25	545
WL-C-2K	220V 1PH	2KVA	500	4500	100	50	545
WL-C-2.5K	220V 1PH	2.5KVA	1000	9000	100	50	545
WL-C-3K	380V 3PH	3KVA	1500	14000	350	80	950
WL-C-5K	380V 3PH	5KVA	3000	28000	350	80	700
WL-C-7K	380V 3PH	7KVA	4500	42000	800	100	950
WL-C-10K	380V 3PH	10KVA	6000	60000	1000	100	950
WL-C-12K	380V 3PH	12KVA	7000	70000	1000	100	950
WL-C-15K	380V 3PH	15KVA	8000	80000	1000	100	950
WL-C-18K	380V 3PH	18KVA	10000	15000	1000	100	950
WL-C-20K	380V 3PH	20KVA	15000	150000	1500	100	950
WL-C-25K	380V 3PH	25KVA	18000	18000	2000	100	950
WL-C-30K	380V 3PH	30KVA	20000	20000	2000	100	1100
WL-C-40K	380V 3PH	40KVA	25000	25000	2000	100	1100
WL-C-50K	380V 3PH	50KVA	30000	30000	2000	100	1100
WL-C-60K	380V 3PH	60KVA	35000	35000	2000	100	1100

Application Examples and Samples
