Precision Bending Made Easy with Stainless Steel Welding Machine
The Sheet Metal Reinforcement Welding Machine is a high-performance industrial equipment designed for seamless welding of metal sheets including steel, aluminum, and stainless steel in structural reinforcement applications. Combining advanced arc welding technology with automated precision, it ensures robust joint strength, minimal deformation, and superior durability for heavy-duty fabrication.
Intelligent Welding Control System
Intelligent Touch Screen Controller for input and reading welding parameters. The welding conditions can be easily set using the touch panel system. You can save different welding parameters for different materials and thicknesses, allowing easy recall of welding programs.

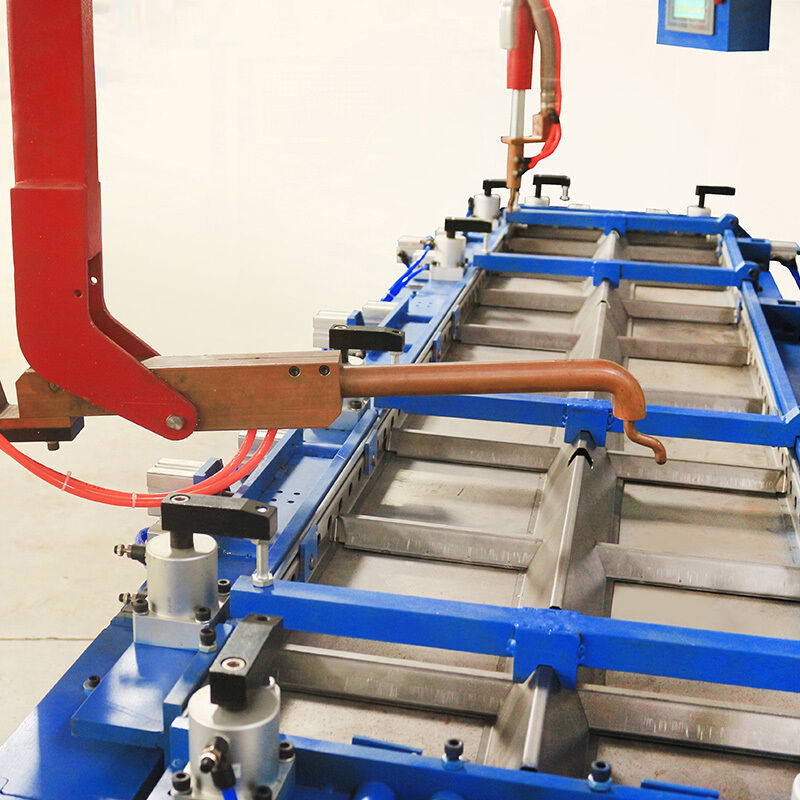

Welding Platform

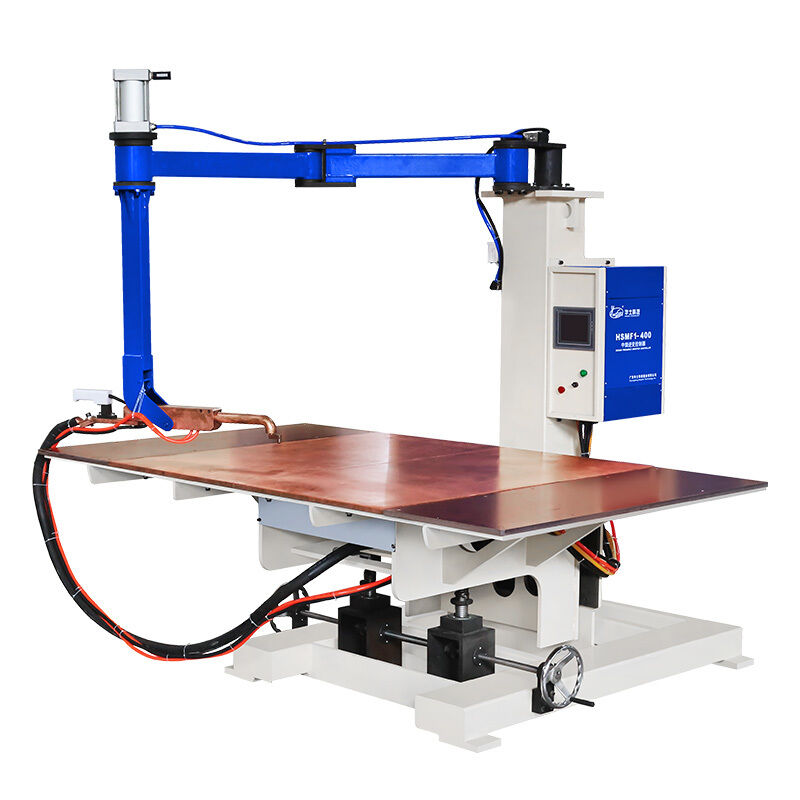

Flat large copper table for welding various sheet metal door panels. If the workpiece can be placed on the table-type electrode, it can be welded without auxiliary personnel. The welding gun moves freely, allowing easy access to desired welding points by one person.
Standard Welding Electrode
Welding can be done efficiently by changing the electrode tip according to the type and size of product. It can also weld nuts, screws, and other fasteners.
Easy Setup and Operation
Comfortable working position: No need to hold the workpiece during welding. Pressurization is automatic, greatly reducing the physical burden on the operator.
Designed specifically to address critical challenges of weld quality in precision bending applications, our Table Spot Welding Machine redefines reliability and accuracy for metal fabrication professionals. Whether working on thin-gauge sheets, complex bent components, or high-precision parts for industries like automotive, electronics, or medical devices, this machine delivers consistent, flawless welds that eliminate common imperfections such as spatter, uneven fusion, cold joints, or distortion.
Core Advantages for Precision Bending Scenarios
- Imperfection-Free Weld Formation: Advanced current control technology and high-precision electrode positioning ensure uniform heat distribution across weld spots, minimizing thermal stress on bent workpieces and preventing warping or deformation.
- Adaptive Bending Compatibility: Compact tabletop design and adjustable clamping force accommodate various bent part geometries, from simple angles to complex 3D-formed structures with flexible electrode arms reaching tight spots.
- Consistency & Repeatability: Digital control panel allows operators to store and recall custom welding parameters for specific bending tasks, eliminating human error and ensuring consistent high-quality welds.
- Damage Prevention for Thin Materials: Low-spatter welding process and soft-clamping mechanism protect thin-gauge metals from scratches or indentations, preserving both aesthetic and functional quality.
Table Spot Welding Machine Features

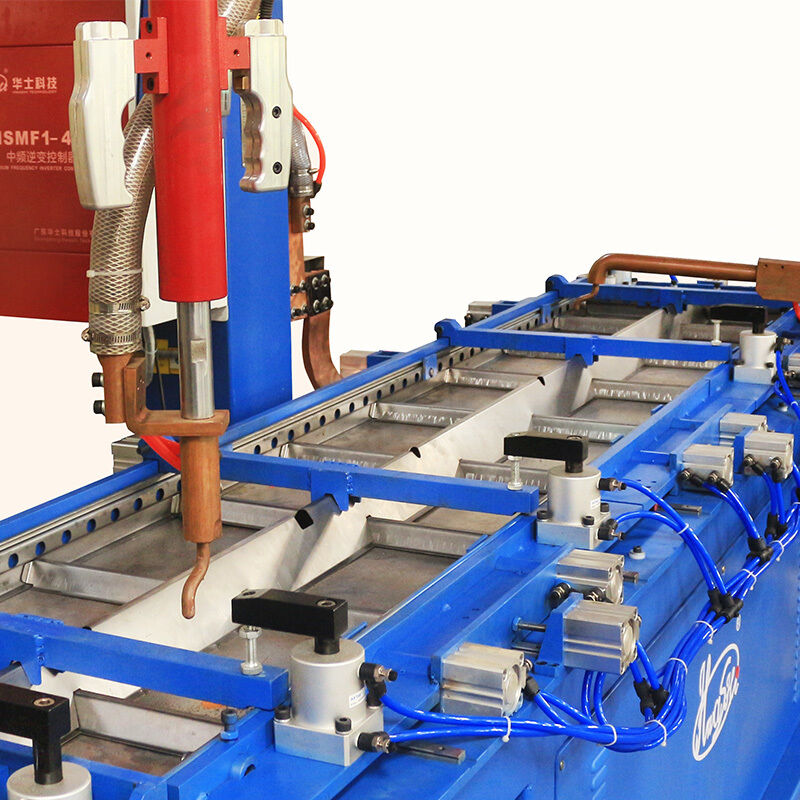

- Movement patterns can be chosen as manual or CNC automatic mobile type
- Manual mobile method features simple structure, convenient flexibility, and easy welding spot location with good applicability to complex products
- Automatic mobile method uses coding servo motor with precision-machined slide rail, ball screw, and automatic testing system for electrode automatic movement
- Automatic device uses X, Y axis mobile working table with PLC for storing mobile programs and simple, convenient setting
- Direct single-point welding method with complete flat lower electrode suitable for flat plates with multiple welding spots, guaranteeing surface smoothness and welding spot consistency
Specifications
| Model |
WL-SF-50/75/100K |
| Input Power (V/φ) |
380/3 |
| Rated Power (KVA) |
50/75/100 |
| Applicable Material |
Stainless Steel, Carbon steel, Aluminum, Metal |
| Electrode Force (KG) |
250-400 |
| Welding Thickness (MM) |
3.0+3.0 |
| Warranty |
1 year |
Application and Samples
We provide customized services for your specific needs. Our engineers will discuss your welding requirements and develop suitable technical proposals based on your samples or drawings.
Applicable Industries
Various industries including chassis and cabinets, elevators, electrical cabinets, automobiles, steel and wood furniture, kitchen appliances, and more.
Factory & Certificate
HWASHI: 22+ Years Experience Welding Solutions Expert
Guangdong Hwashi Technology Inc., established in 2001 and located in Huizhou, Guangdong province in China, is a high-tech enterprise specializing in developing, manufacturing, and selling resistance welding machines, automatic welding machines, and industrial robot stations. We operate two manufacturing plants covering 60,000 square meters with approximately 200 staff members, including more than 20 mechanical and electrical engineers with over 10 years of experience in the welding industry.
We hold more than 70 patents for welding machine projects and our machines have been exported to over 70 countries worldwide. We maintain local distributors in Russia, Turkey, Romania, Saudi Arabia, Malaysia, Indonesia, India, USA, and other regions to provide professional pre-sales and after-sales service.
