Name: Battery Spot Welder Resistance Welding Machine Capacitive Energy Spot Welder Stainless Steel Spot Weld Machine Price
Brand: Guangdong Hwashi Technology inc.
SKU: WL-C-2K
Price: 157,805.00 USD
Availability: InStock

집 > 상품 > 점 용접기 >

Battery Spot Welder Resistance Welding Machine Capacitive Energy Spot Welder Stainless Steel Spot Weld Machine Price

stainless steel spot welder

capacitive energy spot welding machine

battery spot welder with warranty

원래 장소:

중국

브랜드 이름:

HWASHI

인증:

CE/CCC/ISO

모델 번호:

WL-C-2K

문의하기

조회를 요청하다

제품 상세정보

모델:

WL-C-2K

정격 출력(KVA):

적용 가능한 자료:

스테인레스 스틸, 탄소강, 알루미늄, 금속

최대 단락 전류 (KA):

기준:

CE/CCC/ISO

전극력(KG):

100

지불과 운송 용어

최소 주문 수량

1 세트

가격

협상 가능

포장 세부 사항

바다 가치있는 나무 패키지

배달 시간

지불을받은 후 7-30 일

지불 조건

l/c, t/t

공급 능력

한 달에 50 세트

HWASHI Wire Diameter 2-8mm Automatic ring making butt welding machine Circle Ring Bar Pneumatic Resistance Butt Welding Machine

최고의 가격을 얻으십시오

화면

Hwashi Customizable AC Pulse Spot Welding Machine for Different Welding Requirements in Hardware Industry

최고의 가격을 얻으십시오

화면

HWASHI Wire Frame T Butt Welding Machine

최고의 가격을 얻으십시오

화면

Battery Spot Welder Resistance Welding Machine Capacitive Energy Spot Welder Stainless Steel Spot Weld Machine Price

최고의 가격을 얻으십시오

문의하기

+8613380655800

marketing@hwashi.com

지금 접촉하세요

제품 설명

220v battery spot welder resistance welding machine capacitive energy spot welder Stainless Steel spot weld machine price

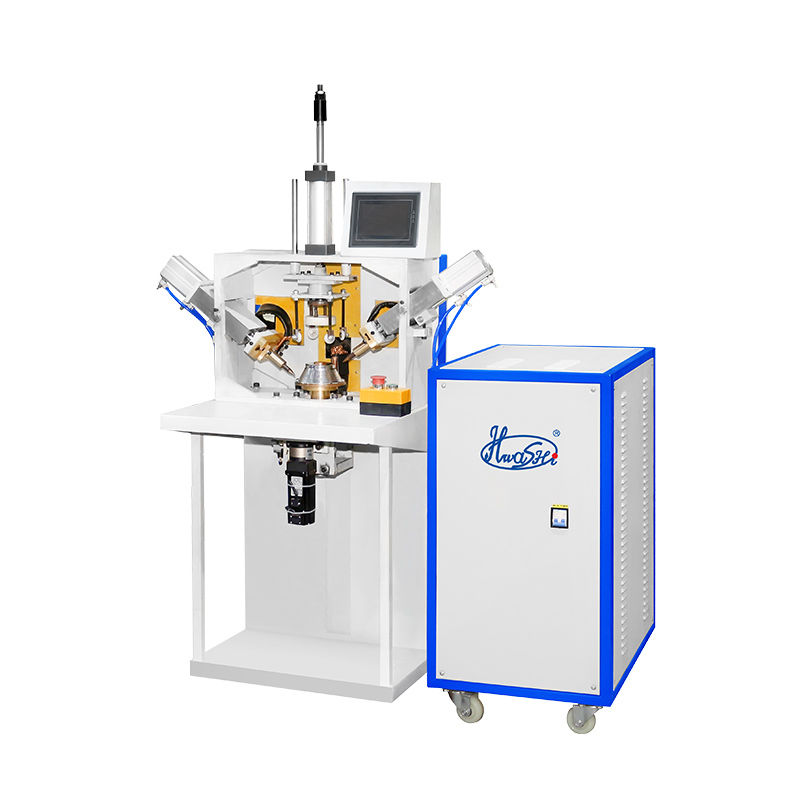

Battery Spot Welder Resistance Welding Machine Capacitive Energy Spot Welder Stainless Steel Spot Weld Machine Price 0

Capacitor discharge spot welding machine is a kind of electrical energy storage spot welder, which is used to charge the capacitor after rectifier rectification of AC power, and then the stored electric energy is converted into a low electric voltage, and the energy is relatively concentrated and stable pulse current, then the metal is fused through the resistance heat generated at the contact point of the welding workpiece.

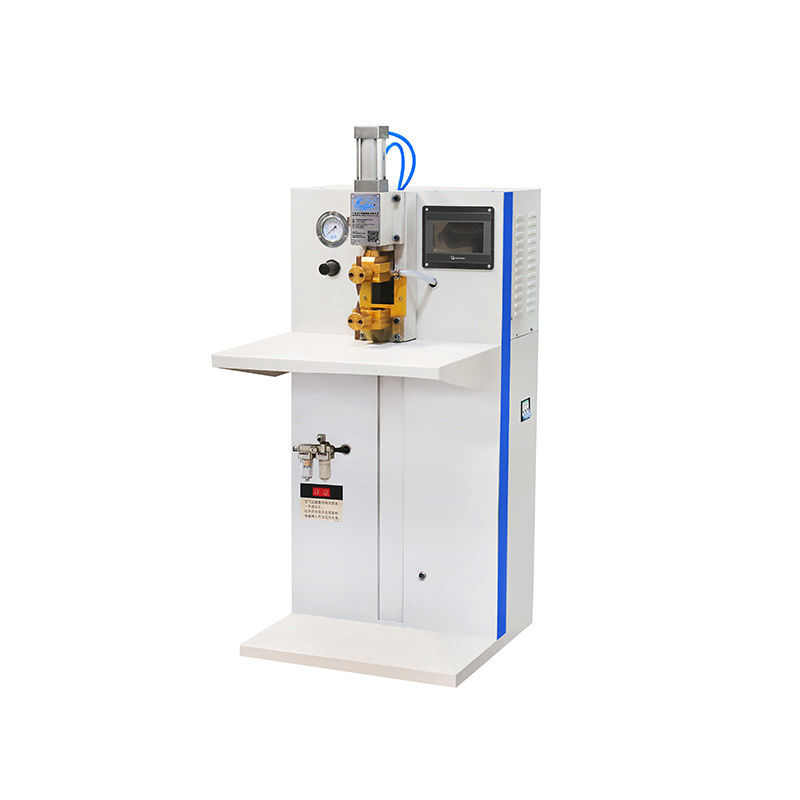

Battery Spot Welder Resistance Welding Machine Capacitive Energy Spot Welder Stainless Steel Spot Weld Machine Price 1

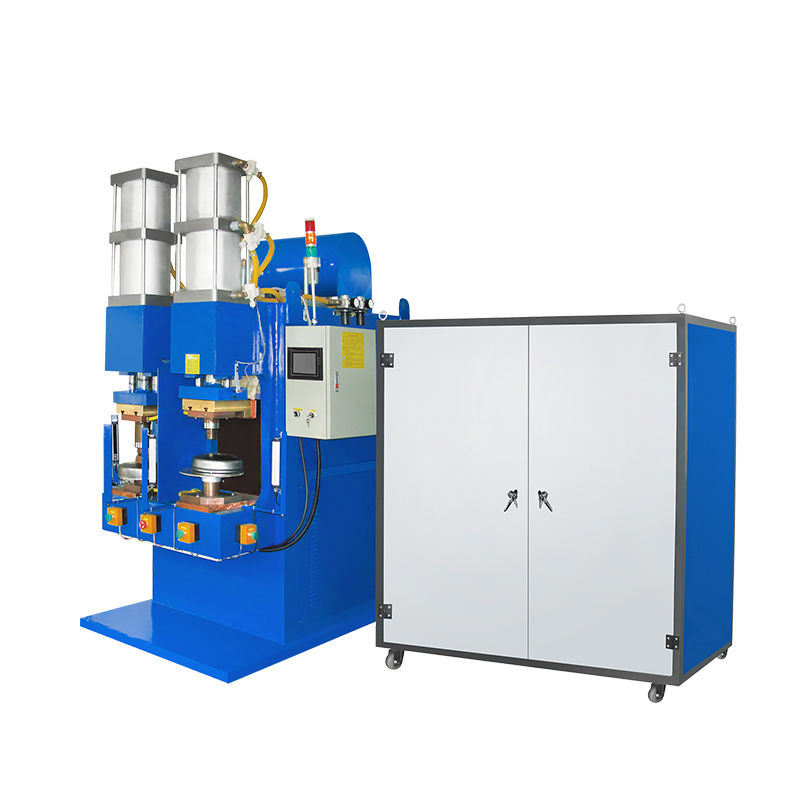

Battery Spot Welder Resistance Welding Machine Capacitive Energy Spot Welder Stainless Steel Spot Weld Machine Price 2

Features of The Capacitor Discharge Spot Welding Machine
1.The requirements for the power grid are low and do not affect the power grid.
2.The welding process is short, the instantaneous current is high, and the heat affected zone is small.
3.The water cooling circulation system helps to effectively reduce the consumption of electrodes and transformers.
4.The welding surface oxidation and deformation is small, no black coating, and no grinding process is required after welding.

Model	WL-C-2K
Input Power (V/φ)	220/1
Rated Power (KVA)	2
Applicable Material	Stainless Steel, Carbon steel, Aluminum, Metal
Max Short Circuit Current (KA)	1
Electrode Force (KG)	100
Electrode Stroke (MM)	50
Dimension(LWH)	545mm550mm1250mm
Warranty	1 years
