Name: Hwashi High Quality Longitudinal Rolling Seam Welding Machine for Fuel Tank Automatic Seam Welding Machine
Brand: Guangdong Hwashi Technology inc.
SKU: WL-FS -100K
Price: 225,000.00 USD
Availability: InStock

집 > 상품 > 시임 용접 기계 >

Hwashi High Quality Longitudinal Rolling Seam Welding Machine for Fuel Tank Automatic Seam Welding Machine

longitudinal seam welding machine

automatic fuel tank welder

high precision seam welder

Place of Origin:

China

브랜드 이름:

Hwashi

인증:

CE,CCC,ISO

Model Number:

WL-FS -100K

문의하기

조회를 요청하다

제품 상세정보

Product Name:

Stainless Steel Kitchen Sink Seam Welding Machine

Abrasive Belt Width:

Semi-automatic sink welding

Size:

780x1250x1800mm

Control System:

PLC

Welding Width:

5-20mm

Minimum Welding Thickness:

0.2mm

Voltage:

380V,2 Phase,50/60Hz

Machine Type:

Resistance Welding Machine

Service Life:

8-10 years

weight (kg):

400KG

지불과 운송 용어

Minimum Order Quantity

가격

협상 가능

Packaging Details

sea worthy wooden package

Delivery Time

7-30 working days after received your payment

Payment Terms

T/T, L/C

Supply Ability

50 sets per month

Automatic CNC Stainless Steel Kitchen Sink Bowl Maker Seam Welding Machine with Pump Motor Type

최고의 가격을 얻으십시오

화면

Three Phase 380 V Bathroom Sink Seam Welding Machine 780x1500x1800mm

최고의 가격을 얻으십시오

화면

Three Phase 380 V Bathroom Sink Seam Welding Machine 780x1500x1800mm

최고의 가격을 얻으십시오

화면

HWASHI Roller Spot Welder Ventilation Duct Manual Tin Can Side Seam Welding Machine Roll to Roll Banner Welder

최고의 가격을 얻으십시오

문의하기

+8613380655800

marketing@hwashi.com

지금 접촉하세요

제품 설명

Hwashi High Quality Longitudinal Rolling Seam Welding Machine for Fuel Tank Automatic Seam Welding Machine

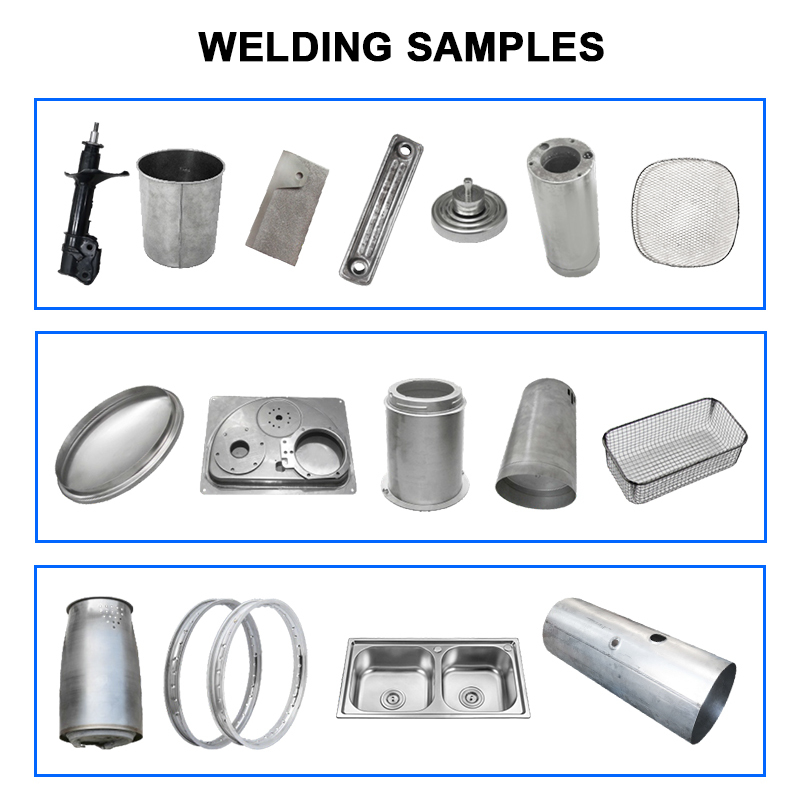

Longitudinal rolling seam welding machine for fuel tank is widely used in automobile, damper of motorcycle, detector of temperature controller, nickel strap of battery, oil heater, power capacitor, sieve iron basket, water pump manufacturing, tin making, coopery industry, etc.

Product Application
Suitable for welding the tank within the range of 500x300mm. Welding material thickness is 0.5-1.5mm. Total welding thickness is 1-3mm.

Welding Method of The Seam Welding Machine
Adopt standardized welding electrode. Special electrode molds and welding methods can also be customized according to the product specification.
Features of The Seam Welding Machine

1. seam welding machine use the roller electrode to replace the cylindrical electrode of spot welding.
2. It will generate weld nuggets which will overlap with each other so as to achieve welding effect.
3. AC pulse current or amplitude modulation current will be adopted, but three (single)-phase rectification, medium frequency and high frequency DC are also available.
4. According to different overlap of the melting cores, it could be divided into roll spot welding and air-tight seam welding.
5. There exist three stages in the forming process of welding spots: pressurization, heating fusing and cooling crystallization like spot welding.

6. The welding wheel can be operated in both horizontal and vertical directions.
7. The transformer and the welding wheel adopt the forced water cooling circulation system, which has a high load duration and achieves Continuous and stable welding.

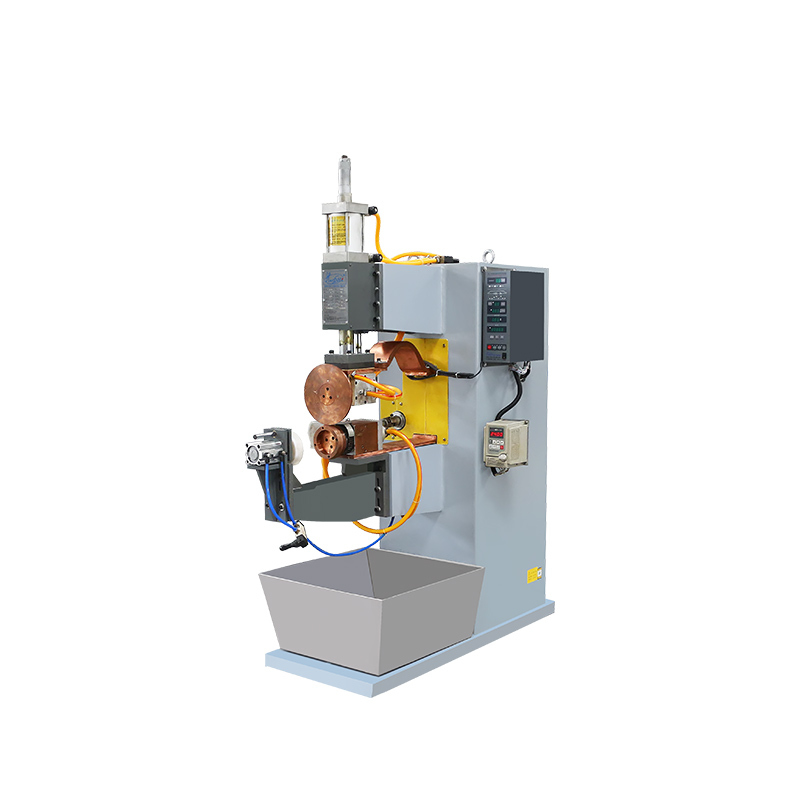

Hwashi High Quality Longitudinal Rolling Seam Welding Machine for Fuel Tank Automatic Seam Welding Machine 1

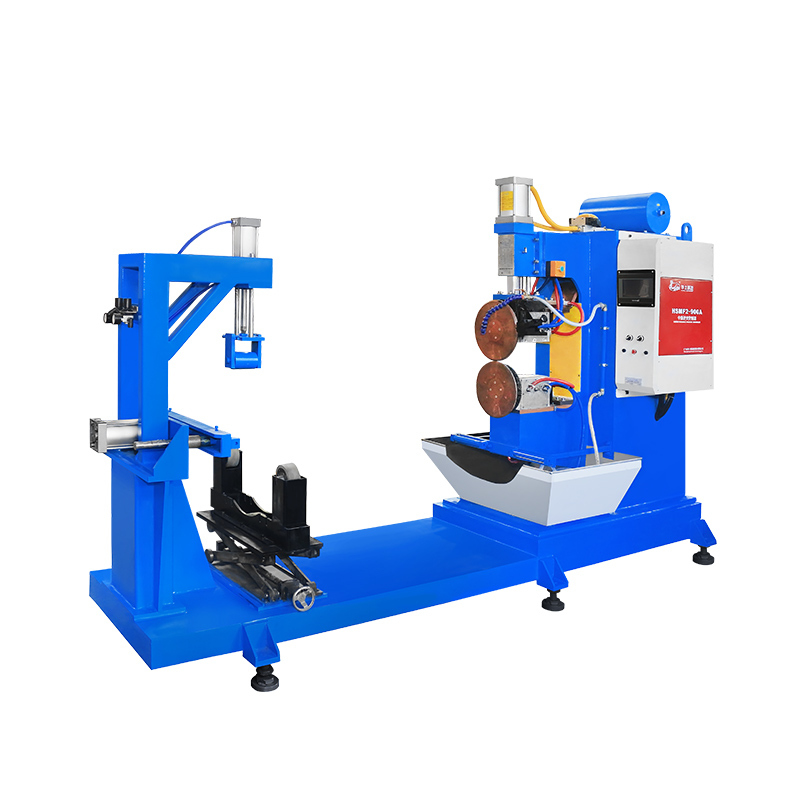

Hwashi High Quality Longitudinal Rolling Seam Welding Machine for Fuel Tank Automatic Seam Welding Machine 2

Specification
Hwashi High Quality Longitudinal Rolling Seam Welding Machine for Fuel Tank Automatic Seam Welding Machine 3

Model	Welding Wheel Manner	Input Voltage	Output Power	Output Current
WL-FSH-16K	Horizontal	220/ 380V	16KW	10000 A
WL-FSL-25K	Circular	220/ 380V	25 KW	12000 A
WL-FSH-25K	Horizontal	220/ 380V	25 KW	12000 A
WL-FSH-35K	Horizontal	380V	35 KW	16000 A
WL-FSZ-50K	Vertical	380V	50 KW	19500 A
WL-FSZ-75K	Vertical	380V	75 KW	24000 A
WL-FST-50K	Special Machine structure	380V	50 KW	19500 A
WL-FST-150K	Special Machine structure	380V	150 KW	40000 A
WL-FST-200K	Special Machine structure	380V	200 KW	50000 A
WL-FS-100K	Vertical	380V	100 KW	30000 A
